Architecture

Understanding the SharedVolume architecture helps you make informed decisions about deployment and usage patterns. The system provides a comprehensive solution for shared storage with automatic synchronization from external sources.

Architecture Overview

The SharedVolume system follows a distributed architecture pattern with multiple components working together to provide seamless shared storage with data synchronization capabilities.

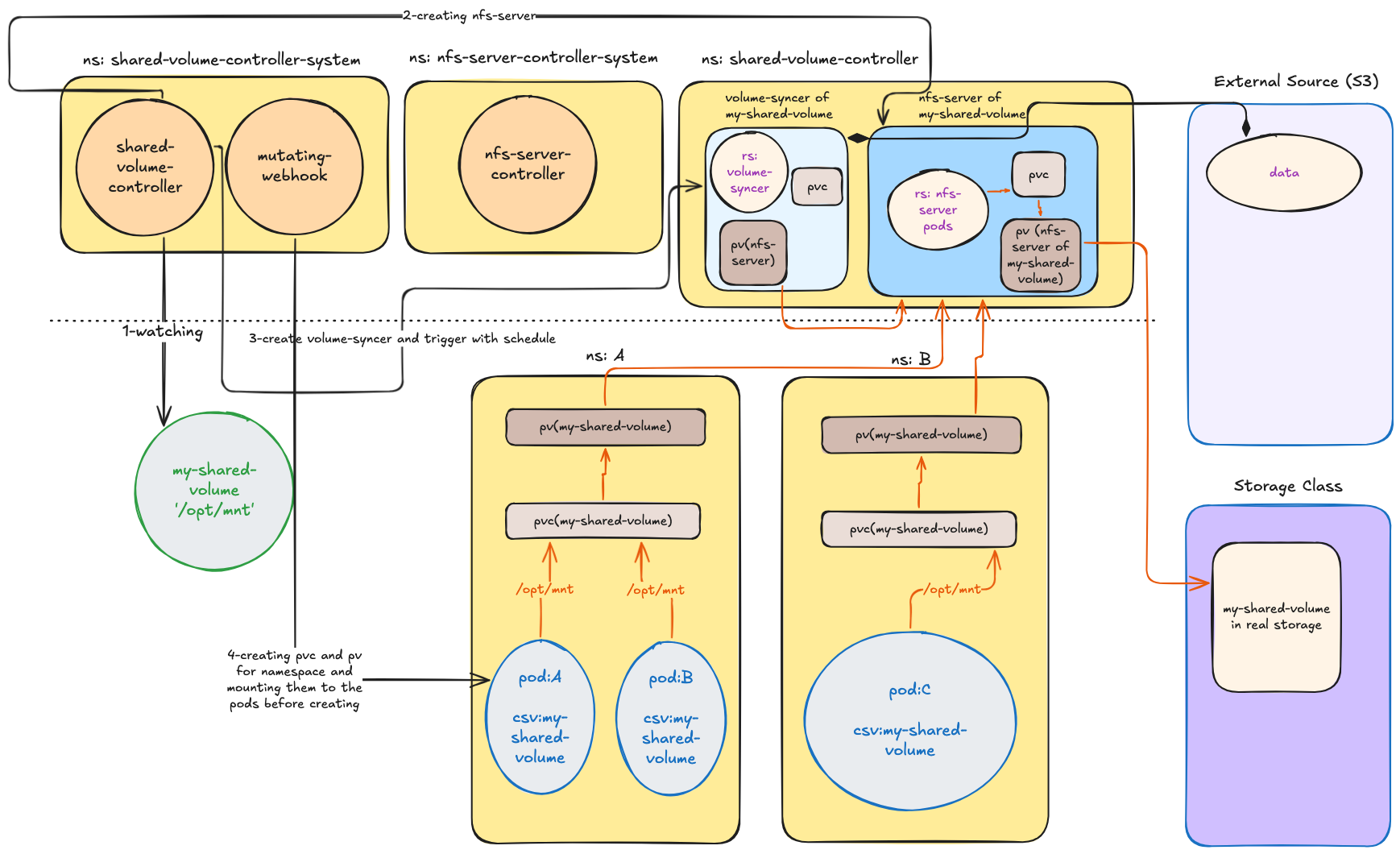

Detailed Architecture

The detailed architecture diagram illustrates the complete system with all components, data flows, and integration points:

  • Multi-namespace Support: Shows both SharedVolume (namespace-scoped) and ClusterSharedVolume (cluster-scoped) deployments
  • Resource Management: PVC/PV creation and lifecycle management
  • Sync Operations: Data flow from external sources through the syncer to NFS storage
  • Pod Integration: How user pods connect to shared volumes through the webhook system

Core Components

Shared Volume Controller

The Shared Volume Controller is the central orchestrator running in the shared-volume-controller-system namespace. It manages the entire lifecycle of SharedVolume and ClusterSharedVolume resources.

Key Responsibilities:

  • Watches for SharedVolume/ClusterSharedVolume creation and updates
  • Orchestrates the creation of NFS servers and volume syncers
  • Manages the lifecycle of all related components
  • Handles resource cleanup when volumes are deleted

Volume Syncer

The Volume Syncer is a specialized component responsible for synchronizing data from external sources to the NFS storage.

Key Features:

  • Runs as a ReplicaSet for reliability
  • Supports multiple source types (Git, S3, SSH, HTTP)
  • Handles authentication and connection management
  • Performs periodic synchronization based on configured intervals
  • Manages sync timeouts and error handling

NFS Server

The NFS Server provides the shared storage backend that pods can mount.

Deployment Options:

  • Dynamic NFS Server: Automatically created and managed by the system
  • External NFS Server: User-provided existing NFS server

Admission Webhook

The Admission Webhook automatically handles volume mounting for pods with appropriate annotations.

Functionality:

  • Intercepts pod creation requests
  • Detects SharedVolume annotations
  • Creates necessary PV/PVC resources
  • Configures NFS mounts automatically

Operational Flow

SharedVolume Creation Flow

1. User creates SharedVolume resource
        ↓
2. Shared Volume Controller detects new resource
        ↓
3. Controller creates NFS Server in SAME namespace
        ↓
4. When NFS Server is ready, Controller creates:
   • Volume Syncer ReplicaSet
   • PVC connected to NFS Server
   • PV for the shared storage
        ↓
5. Volume Syncer starts data synchronization
        ↓
6. SharedVolume status becomes "Ready"

ClusterSharedVolume Creation Flow

1. User creates ClusterSharedVolume resource
        ↓
2. Shared Volume Controller detects new resource
        ↓
3. Controller creates NFS Server in CONTROLLER namespace
   (shared-volume-controller-system)
        ↓
4. When NFS Server is ready, Controller creates:
   • Volume Syncer ReplicaSet (in ns: shared-volume-controller-system)
   • PVC connected to NFS Server
   • PV for the shared storage
        ↓
5. Volume Syncer starts data synchronization
        ↓
6. ClusterSharedVolume status becomes "Ready"

Pod Mounting Flow

1. User creates Pod with SharedVolume annotation
        ↓
2. Admission Webhook intercepts pod creation
        ↓
3. Webhook identifies target SharedVolume/ClusterSharedVolume
        ↓
4. Webhook creates (if not exists):
   • PV connected to SharedVolume's NFS Server
   • PVC in Pod's namespace
        ↓
5. Webhook modifies Pod spec to include NFS mount
        ↓
6. Pod starts with shared volume mounted

Resource Cleanup Flow

1. Last Pod using SharedVolume is deleted
        ↓
2. Controller detects no active consumers
        ↓
3. Controller deletes:
   • PVC and PV (in pod's namespace)
        ↓
4. SharedVolume/ClusterSharedVolume is deleted
        ↓
5. Controller deletes:
   • Volume Syncer ReplicaSet
   • NFS Server (if dynamically created)
   • All associated resources

Deployment Topologies

SharedVolume (Namespace-Scoped)

┌─────────────────────────────────────┐
│         User Namespace              │
├─────────────────────────────────────┤
│  ┌─────────────┐  ┌───────────────┐ │
│  │ User Pods   │  │ NFS Server    │ │
│  │ (mounted)   │  │ (dynamic)     │ │
│  └─────────────┘  └───────────────┘ │
│         │                │          │
│  ┌─────────────┐  ┌───────────────┐ │
│  │ PVC/PV      │  │ Volume Syncer │ │
│  │ (NFS)       │  │ (ReplicaSet)  │ │
│  └─────────────┘  └───────────────┘ │
└─────────────────────────────────────┘

┌─────────────────────────────────────┐
│  shared-volume-controller-system    │
├─────────────────────────────────────┤
│  ┌─────────────────────────────────┐ │
│  │   Shared Volume Controller      │ │
│  │   (Orchestrator)                │ │
│  └─────────────────────────────────┘ │
└─────────────────────────────────────┘

Characteristics:

  • NFS Server created in the same namespace as SharedVolume
  • Volume Syncer runs in the same namespace
  • Provides namespace isolation
  • Ideal for team or project-specific storage

ClusterSharedVolume (Cluster-Scoped)

┌─────────────────────────────────────┐
│          User Namespace             │
├─────────────────────────────────────┤
│  ┌─────────────┐  ┌───────────────┐ │
│  │ User Pods   │  │ PVC/PV        │ │
│  │ (mounted)   │  │ (NFS)         │ │
│  └─────────────┘  └───────────────┘ │
└─────────────────────────────────────┘
                       │
┌─────────────────────────────────────┐
│  shared-volume-controller-system    │
├─────────────────────────────────────┤
│  ┌─────────────────────────────────┐ │
│  │   Shared Volume Controller      │ │
│  └─────────────────────────────────┘ │
│  ┌─────────────┐  ┌───────────────┐ │
│  │ NFS Server  │  │ Volume Syncer │ │
│  │ (dynamic)   │  │ (ReplicaSet)  │ │
│  └─────────────┘  └───────────────┘ │
└─────────────────────────────────────┘

Characteristics:

  • NFS Server created in controller namespace
  • Volume Syncer runs in controller namespace
  • Centralized management
  • Ideal for organization-wide shared data

External NFS Server Integration

When using external NFS servers, the system behavior changes:

┌─────────────────────────────────────┐
│         User Namespace              │
├─────────────────────────────────────┤
│  ┌─────────────┐  ┌───────────────┐ │
│  │ User Pods   │  │ Volume Syncer │ │
│  │ (mounted)   │  │ (ReplicaSet)  │ │
│  └─────────────┘  └───────────────┘ │
│         │                │          │
│  ┌─────────────┐         │          │
│  │ PVC/PV      │         │          │
│  │ (NFS)       │         │          │
│  └─────────────┘         │          │
└─────────────────────────────────────┘
         │                  │
         ▼                  ▼
┌─────────────────────────────────────┐
│       External NFS Server           │
│     (User Managed)                  │
└─────────────────────────────────────┘

Key Differences:

  • No dynamic NFS server creation
  • Uses existing NFS infrastructure
  • Multiple SharedVolumes can reference the same NFS server
  • NFS server lifecycle managed independently

Data Flow and Synchronization

Sync Process Flow

External Source ──┐
                  │
    ┌─────────────▼─────────────┐
    │     Volume Syncer         │
    │                           │
    │  1. Fetch from source     │
    │  2. Authentication        │
    │  3. Data download         │
    │  4. Write to NFS          │
    └─────────────┬─────────────┘
                  │
    ┌─────────────▼─────────────┐
    │      NFS Server           │
    │   (Shared Storage)        │
    └─────────────┬─────────────┘
                  │
    ┌─────────────▼─────────────┐
    │       User Pods           │
    │    (Read/Write data)      │
    └───────────────────────────┘

Sync Triggers

  1. Periodic Sync: Based on syncInterval configuration
  2. Initial Sync: When SharedVolume is first created
  3. Manual Trigger: Through controller API (if supported)

Integration Points

Kubernetes API Integration

  • Custom Resources: SharedVolume and ClusterSharedVolume CRDs
  • Admission Controllers: Webhook for automatic volume mounting
  • Controllers: Standard Kubernetes controller pattern
  • RBAC: Proper role-based access control

Storage Integration

  • NFS Protocol: Standard NFS v4 support
  • Persistent Volumes: Kubernetes PV/PVC abstraction
  • Storage Classes: Integration with cluster storage classes

External Source Integration

  • Git Repositories: SSH and HTTPS protocols
  • S3 Compatible Storage: AWS S3, MinIO, etc.
  • SSH/SFTP: Direct file transfer protocols
  • HTTP/HTTPS: Simple file downloads

Security Model

Access Control

  • RBAC: Controller permissions managed through Kubernetes RBAC
  • Namespace Isolation: SharedVolume respects namespace boundaries
  • Secret Management: Secure credential storage in Kubernetes secrets

Network Security

  • NFS Security: Standard NFS security mechanisms
  • TLS/SSL: Encrypted connections to external sources
  • Network Policies: Kubernetes network policy support

Performance Considerations

Scalability Factors

  • NFS Server Capacity: Storage and network bandwidth limits
  • Sync Frequency: Balance between freshness and system load
  • Concurrent Access: Multiple pods accessing shared storage
  • Resource Limits: CPU and memory for syncer components

Optimization Strategies

  • Sync Intervals: Tune based on data change frequency
  • Resource Limits: Set appropriate CPU/memory limits
  • Storage Classes: Use appropriate storage backends
  • Network Optimization: Consider NFS mount options

Monitoring and Observability

Key Metrics

  • SharedVolume/ClusterSharedVolume status and health
  • Sync operation success/failure rates
  • NFS server performance and availability
  • Storage utilization and growth

Logging

  • Controller operation logs
  • Volume syncer operation logs
  • NFS server access logs
  • Webhook operation logs

Troubleshooting Architecture

Common Issues

  1. Sync Failures: Network connectivity, authentication
  2. Mount Issues: NFS server availability, permissions
  3. Performance Problems: Storage bottlenecks, network latency
  4. Resource Conflicts: Namespace permissions, RBAC issues

Debug Flow

1. Check SharedVolume/ClusterSharedVolume status
        ↓
2. Verify NFS server health and accessibility
        ↓
3. Check Volume Syncer logs and status
        ↓
4. Validate external source connectivity
        ↓
5. Review pod mounting and PVC/PV status

This architecture provides a robust, scalable solution for shared storage with automatic data synchronization, supporting both namespace-scoped and cluster-scoped use cases while maintaining security and operational simplicity.
